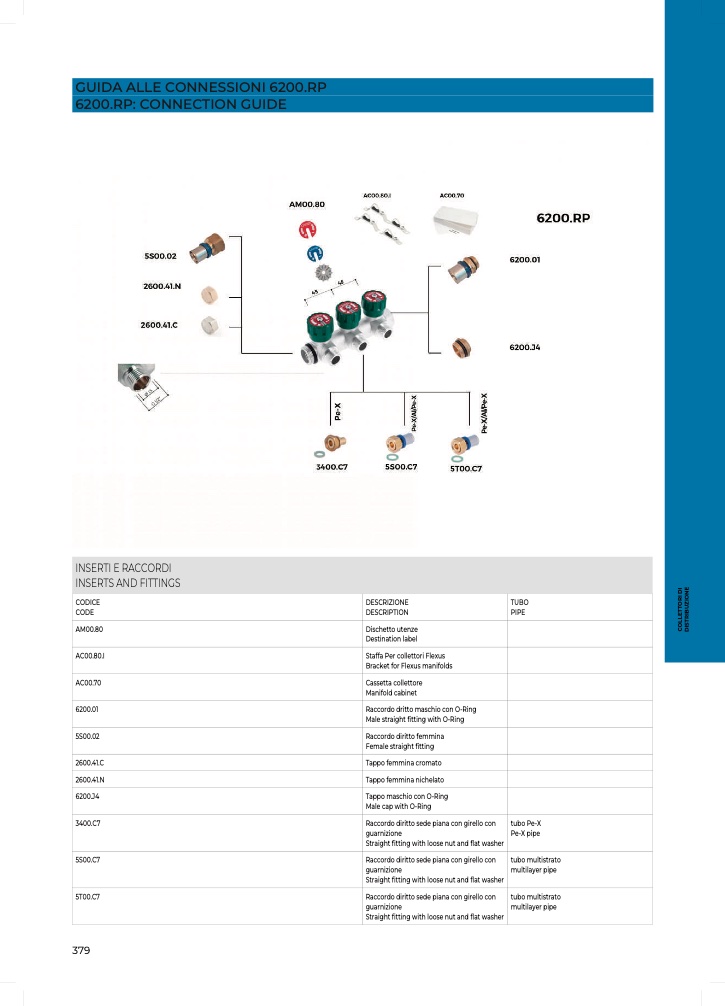

GUIDA ALLE CONNESSIONI 6200.RP

6200.RP: CONNECTION GUIDE

INSERTI E RACCORDI

INSERTS AND

FITTINGS

CODICE

DESCRIZIONE

TUBO

CODE

DESCRIPTION

PIPE

AM00.80

Dischetto utenze

Destination label

AC00.80.I

Staffa Per collettori Flexus

Bracket for Flexus manifolds

AC00.70

Cassetta collettore

Manifold cabinet

6200.01

Raccordo dritto maschio con O-Ring

Male straight fitting with O-Ring

5S00.02

Raccordo diritto femmina

Female straight fitting

2600.41.C

Tappo femmina cromato

2600.41.N

Tappo femmina nichelato

6200.J4

Tappo maschio con O-Ring

Male cap with O-Ring

3400.C7

Raccordo diritto sede piana con girello con

guarnizione

Straight fitting with loose nut and flat washer

tubo Pe-X

Pe-X pipe

5S00.C7

Raccordo diritto sede piana con girello con

guarnizione

Straight fitting with loose nut and flat washer

tubo multistrato

multilayer pipe

5T00.C7

Raccordo diritto sede piana con girello con

guarnizione

Straight fitting with loose nut and flat washer

tubo multistrato

multilayer pipe
