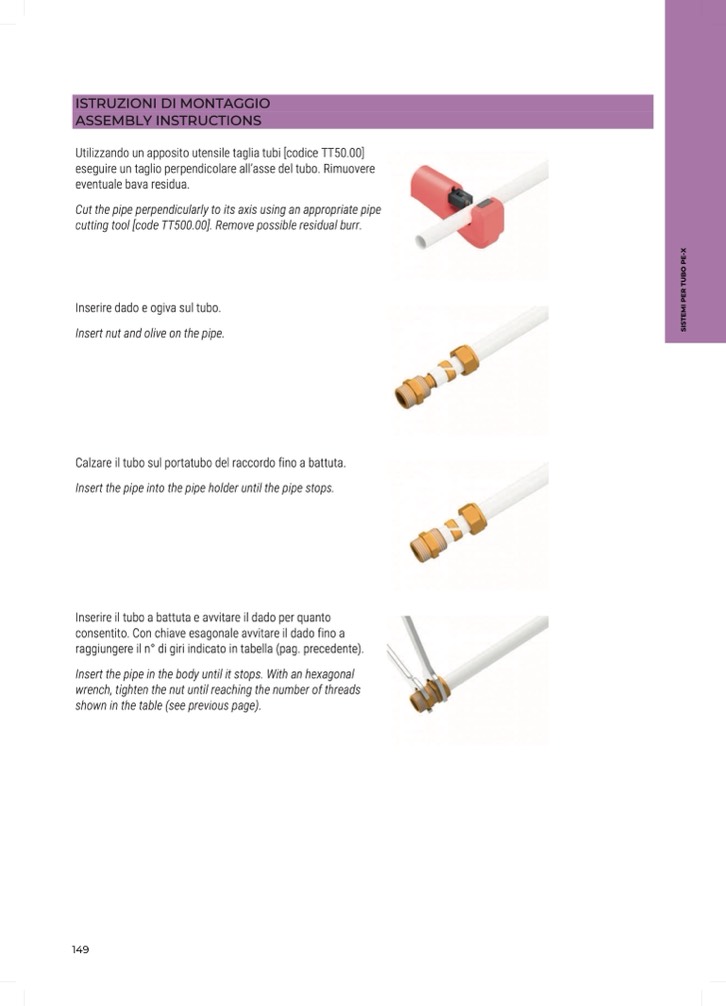

ISTRUZIONI DI MONTAGGIO

ASSEMBLY INSTRUCTIONS

Utilizzando un apposito utensile taglia tubi [codice TT50.00]

eseguire un taglio perpendicolare all’asse del tubo. Rimuovere

eventuale bava residua.

Cut the pipe perpendicularly to its axis using an appropriate pipe

cutting tool [code TT500.00]. Remove possible residual burr.

Inserire dado e ogiva sul tubo.

Insert nut and olive on the pipe.

Calzare il tubo sul portatubo del raccordo fino a battuta.

Insert the pipe into the pipe holder until the pipe stops.

Inserire il tubo a battuta e avvitare il dado per quanto

consentito. Con chiave esagonale avvitare il dado fino a

raggiungere il n° di giri indicato in tabella (pag. precedente).

Insert the pipe in the body until it stops. With an hexagonal

wrench, tighten the nut until reaching the number of threads

shown in the table (see previous page).
