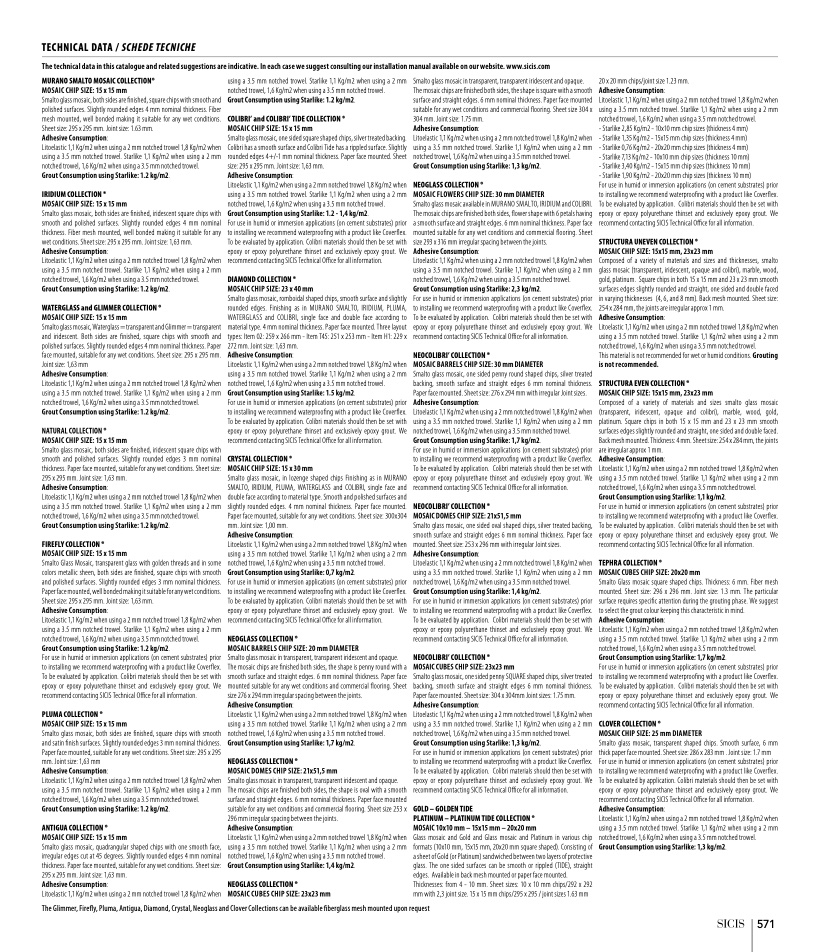

TECHNICAL DATA / SCHEDE TECNICHE
The technical data in this catalogue and related suggestions are indicative. In each case we suggest consulting our installation manual available on our website. www.sicis.com
MURANO SMALTO MOSAIC COLLECTION®
MOSAIC CHIP SIZE: 15 x 15 mm
Smalto glass mosaic, both sides are finished, square chips with smooth and
polished surfaces. Slightly rounded edges 4 mm nominal thickness. Fiber
mesh mounted, well bonded making it suitable for any wet conditions.
Sheet size: 295 x 295 mm. Joint size: 1.63 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.2 kg/m2.
IRIDIUM COLLECTION ®
MOSAIC CHIP SIZE: 15 x 15 mm
Smalto glass mosaic, both sides are finished, iridescent square chips with
smooth and polished surfaces. Slightly rounded edges 4 mm nominal
thickness. Fiber mesh mounted, well bonded making it suitable for any
wet conditions. Sheet size: 295 x 295 mm. Joint size: 1,63 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.2 kg/m2.
WATERGLASS and GLIMMER COLLECTION ®
MOSAIC CHIP SIZE: 15 x 15 mm
Smalto glass mosaic, Waterglass = transparent and Glimmer = transparent
and iridescent. Both sides are finished, square chips with smooth and
polished surfaces. Slightly rounded edges 4 mm nominal thickness. Paper
face mounted, suitable for any wet conditions. Sheet size: 295 x 295 mm.
Joint size: 1,63 mm
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.2 kg/m2.
NATURAL COLLECTION ®
MOSAIC CHIP SIZE: 15 x 15 mm
Smalto glass mosaic, both sides are finished, iridescent square chips with
smooth and polished surfaces. Slightly rounded edges 3 mm nominal
thickness. Paper face mounted, suitable for any wet conditions. Sheet size:
295 x 295 mm. Joint size: 1,63 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.2 kg/m2.
FIREFLY COLLECTION ®
MOSAIC CHIP SIZE: 15 x 15 mm
Smalto Glass Mosaic, transparent glass with golden threads and in some
colors metallic sheen, both sides are finished, square chips with smooth
and polished surfaces. Slightly rounded edges 3 mm nominal thickness.
Paper face mounted, well bonded making it suitable for any wet conditions.
Sheet size: 295 x 295 mm. Joint size: 1,63 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.2 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
PLUMA COLLECTION ®
MOSAIC CHIP SIZE: 15 x 15 mm
Smalto glass mosaic, both sides are finished, square chips with smooth
and satin finish surfaces. Slightly rounded edges 3 mm nominal thickness.
Paper face mounted, suitable for any wet conditions. Sheet size: 295 x 295
mm. Joint size: 1,63 mm
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.2 kg/m2.
ANTIGUA COLLECTION ®
MOSAIC CHIP SIZE: 15 x 15 mm
Smalto glass mosaic, quadrangular shaped chips with one smooth face,
irregular edges cut at 45 degrees. Slightly rounded edges 4 mm nominal
thickness. Paper face mounted, suitable for any wet conditions. Sheet size:
295 x 295 mm. Joint size: 1,63 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.2 kg/m2.
COLIBRI’ and COLIBRI’ TIDE COLLECTION ®
MOSAIC CHIP SIZE: 15 x 15 mm
Smalto glass mosaic, one sided square shaped chips, silver treated backing.
Colibri has a smooth surface and Colibri Tide has a rippled surface. Slightly
rounded edges 4+/-1 mm nominal thickness. Paper face mounted. Sheet
size: 295 x 295 mm. Joint size: 1,63 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.2 - 1,4 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
DIAMOND COLLECTION ®
MOSAIC CHIP SIZE: 23 x 40 mm
Smalto glass mosaic, romboidal shaped chips, smooth surface and slightly
rounded edges. Finishing as in MURANO SMALTO, IRIDIUM, PLUMA,
WATERGLASS and COLIBRI, single face and double face according to
material type. 4 mm nominal thickness. Paper face mounted. Three layout
types: Item 02: 259 x 266 mm - Item T45: 251 x 253 mm - Item H1: 229 x
272 mm. Joint size: 1,63 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1.5 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
CRYSTAL COLLECTION ®
MOSAIC CHIP SIZE: 15 x 30 mm
Smalto glass mosaic, in lozenge shaped chips Finishing as in MURANO
SMALTO, IRIDIUM, PLUMA, WATERGLASS and COLIBRI, single face and
double face according to material type. Smooth and polished surfaces and
slightly rounded edges. 4 mm nominal thickness. Paper face mounted.
Paper face mounted, suitable for any wet conditions. Sheet size: 300x304
mm. Joint size: 1,00 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 0,7 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
NEOGLASS COLLECTION ®
MOSAIC BARRELS CHIP SIZE: 20 mm DIAMETER
Smalto glass mosaic in transparent, transparent iridescent and opaque.
The mosaic chips are finished both sides, the shape is penny round with a
smooth surface and straight edges. 6 mm nominal thickness. Paper face
mounted suitable for any wet conditions and commercial flooring. Sheet
size 276 x 294 mm irregular spacing between the joints.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,7 kg/m2.
NEOGLASS COLLECTION ®
MOSAIC DOMES CHIP SIZE: 21x51,5 mm
Smalto glass mosaic in transparent, transparent iridescent and opaque.
The mosaic chips are finished both sides, the shape is oval with a smooth
surface and straight edges. 6 mm nominal thickness. Paper face mounted
suitable for any wet conditions and commercial flooring. Sheet size 253 x
296 mm irregular spacing between the joints.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,4 kg/m2.
NEOGLASS COLLECTION ®
MOSAIC CUBES CHIP SIZE: 23x23 mm
Smalto glass mosaic in transparent, transparent iridescent and opaque.
The mosaic chips are finished both sides, the shape is square with a smooth
surface and straight edges. 6 mm nominal thickness. Paper face mounted
suitable for any wet conditions and commercial flooring. Sheet size 304 x
304 mm. Joint size: 1.75 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,3 kg/m2.
NEOGLASS COLLECTION ®
MOSAIC FLOWERS CHIP SIZE: 30 mm DIAMETER
Smalto glass mosaic available in MURANO SMALTO, IRIDIUM and COLIBRI.
The mosaic chips are finished both sides, flower shape with 6 petals having
a smooth surface and straight edges. 6 mm nominal thickness. Paper face
mounted suitable for any wet conditions and commercial flooring. Sheet
size 293 x 316 mm irregular spacing between the joints.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 2,3 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
NEOCOLIBRI’ COLLECTION ®
MOSAIC BARRELS CHIP SIZE: 30 mm DIAMETER
Smalto glass mosaic, one sided penny round shaped chips, silver treated
backing, smooth surface and straight edges 6 mm nominal thickness.
Paper face mounted. Sheet size: 276 x 294 mm with irregular Joint sizes.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,7 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
NEOCOLIBRI’ COLLECTION ®
MOSAIC DOMES CHIP SIZE: 21x51,5 mm
Smalto glass mosaic, one sided oval shaped chips, silver treated backing,
smooth surface and straight edges 6 mm nominal thickness. Paper face
mounted. Sheet size: 253 x 296 mm with irregular Joint sizes.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,4 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
NEOCOLIBRI’ COLLECTION ®
MOSAIC CUBES CHIP SIZE: 23x23 mm
Smalto glass mosaic, one sided penny SQUARE shaped chips, silver treated
backing, smooth surface and straight edges 6 mm nominal thickness.
Paper face mounted. Sheet size: 304 x 304mm Joint sizes: 1.75 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,3 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
GOLD – GOLDEN TIDE
PLATINUM – PLATINUM TIDE COLLECTION ®
MOSAIC 10x10 mm – 15x15 mm – 20x20 mm
Glass mosaic and Gold and Glass mosaic and Platinum in various chip
formats (10x10 mm, 15x15 mm, 20x20 mm square shaped). Consisting of
a sheet of Gold (or Platinum) sandwiched between two layers of protective
glass. The one sided surfaces can be smooth or rippled (TIDE), straight
edges. Available in back mesh mounted or paper face mounted.
Thicknesses: from 4 - 10 mm. Sheet sizes: 10 x 10 mm chips/292 x 292
mm with 2,3 joint size. 15 x 15 mm chips/295 x 295 / joint sizes 1.63 mm
20 x 20 mm chips/joint size 1.23 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
- Starlike 2,85 Kg/m2 - 10x10 mm chip sizes (thickness 4 mm)
- Starlike 1,35 Kg/m2 - 15x15 mm chip sizes (thickness 4 mm)
- Starlike 0,76 Kg/m2 - 20x20 mm chip sizes (thickness 4 mm)
- Starlike 7,13 Kg/m2 - 10x10 mm chip sizes (thickness 10 mm)
- Starlike 3,40 Kg/m2 - 15x15 mm chip sizes (thickness 10 mm)
- Starlike 1,90 Kg/m2 - 20x20 mm chip sizes (thickness 10 mm)
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
STRUCTURA UNEVEN COLLECTION ®
MOSAIC CHIP SIZE: 15x15 mm, 23x23 mm
Composed of a variety of materials and sizes and thicknesses, smalto
glass mosaic (transparent, iridescent, opaque and colibri), marble, wood,
gold, platinum. Square chips in both 15 x 15 mm and 23 x 23 mm smooth
surfaces edges slightly rounded and straight, one sided and double faced
in varying thicknesses (4, 6, and 8 mm). Back mesh mounted. Sheet size:
254 x 284 mm, the joints are irregular approx 1 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
This material is not recommended for wet or humid conditions. Grouting
is not recommended.
STRUCTURA EVEN COLLECTION ®
MOSAIC CHIP SIZE: 15x15 mm, 23x23 mm
Composed of a variety of materials and sizes smalto glass mosaic
(transparent, iridescent, opaque and colibri), marble, wood, gold,
platinum. Square chips in both 15 x 15 mm and 23 x 23 mm smooth
surfaces edges slightly rounded and straight, one sided and double faced.
Back mesh mounted. Thickness: 4 mm. Sheet size: 254 x 284 mm, the joints
are irregular approx 1 mm.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,1 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
TEPHRA COLLECTION ®
MOSAIC CUBES CHIP SIZE: 20x20 mm
Smalto Glass mosaic square shaped chips. Thickness: 6 mm. Fiber mesh
mounted. Sheet size: 296 x 296 mm. Joint size: 1.3 mm. The particular
surface requires specific attention during the grouting phase. We suggest
to select the grout colour keeping this characteristic in mind.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,7 kg/m2.
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
CLOVER COLLECTION ®
MOSAIC CHIP SIZE: 25 mm DIAMETER
Smalto glass mosaic, transparent shaped chips. Smooth surface, 6 mm
thick paper face mounted. Sheet size: 286 x 283 mm . Joint size: 1.7 mm
For use in humid or immersion applications (on cement substrates) prior
to installing we recommend waterproofing with a product like Coverflex.
To be evaluated by application. Colibri materials should then be set with
epoxy or epoxy polyurethane thinset and exclusively epoxy grout. We
recommend contacting SICIS Technical Office for all information.
Adhesive Consumption:
Litoelastic 1,1 Kg/m2 when using a 2 mm notched trowel 1,8 Kg/m2 when
using a 3.5 mm notched trowel. Starlike 1,1 Kg/m2 when using a 2 mm
notched trowel, 1,6 Kg/m2 when using a 3.5 mm notched trowel.
Grout Consumption using Starlike: 1,3 kg/m2.
The Glimmer, Firefly, Pluma, Antigua, Diamond, Crystal, Neoglass and Clover Collections can be available fiberglass mesh mounted upon request
571
