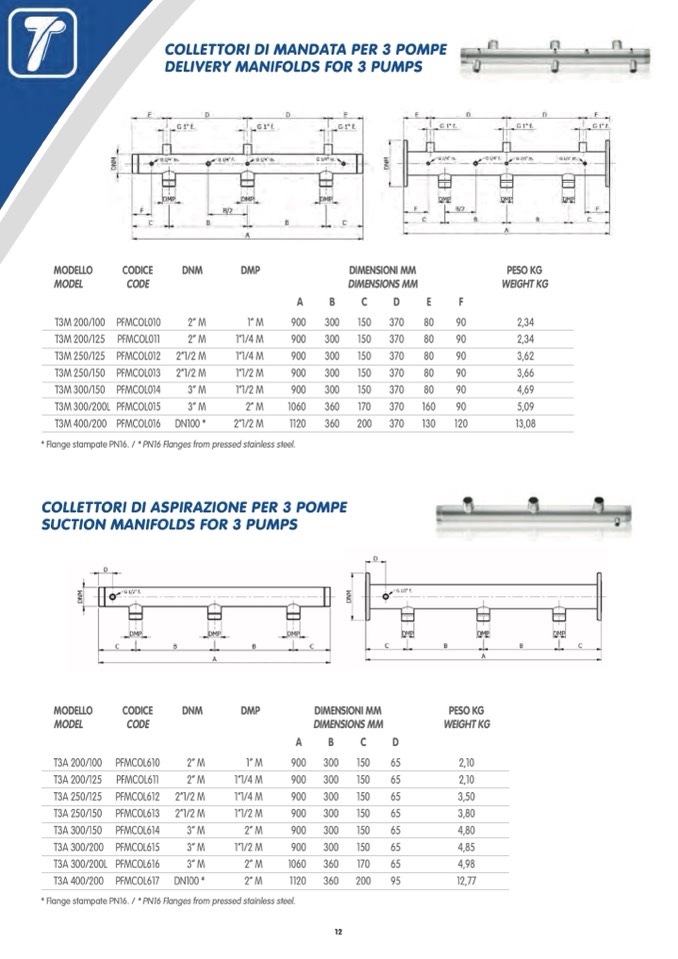

COLLETTORI DI MANDATA PER 3 POMPE

DELIVERY MANIFOLDS FOR 3 PUMPS

MODELLO

MODEL

T3M 200/100

T3M 200/125

T3M 250/125

T3M 250/150

T3M 300/150

T3M 300/200L

T3M 400/200

CODICE

CODE

PFMCOL010

PFMCOL011

PFMCOL012

PFMCOL013

PFMCOL014

PFMCOL015

PFMCOL016

DNM

2” M

2” M

2”1/2 M

2”1/2 M

3” M

3” M

DN100 *

DMP

1” M

1”1/4 M

1”1/4 M

1”1/2 M

1”1/2 M

2” M

2”1/2 M

DIMENSIONI MM

DIMENSIONS MM

A

B

C

D

E

F

PESO KG

WEIGHT KG

2,34

2,34

3,62

3,66

4,69

5,09

13,08

900

300

900

300

900

300

900

300

900

300

1060

360

1120

360

150

370

150

370

150

370

150

370

150

370

170

370

200

370

80

90

80

90

80

90

80

90

80

90

160

90

130

120

* Flange stampate PN16. / * PN16 Flanges from pressed stainless steel.

COLLETTORI DI ASPIRAZIONE PER 3 POMPE

SUCTION MANIFOLDS FOR 3 PUMPS

MODELLO

MODEL

T3A 200/100

T3A 200/125

T3A 250/125

T3A 250/150

T3A 300/150

T3A 300/200

T3A 300/200L

T3A 400/200

CODICE

CODE

PFMCOL610

PFMCOL611

PFMCOL612

PFMCOL613

PFMCOL614

PFMCOL615

PFMCOL616

PFMCOL617

DNM

2” M

2” M

2”1/2 M

2”1/2 M

3” M

3” M

3” M

DN100 *

DMP

1” M

1”1/4 M

1”1/4 M

1”1/2 M

2” M

1”1/2 M

2” M

2” M

DIMENSIONI MM

DIMENSIONS MM

A

B

C

D

900

300

150

65

900

300

150

65

900

300

150

65

900

300

150

65

900

300

150

65

900

300

150

65

1060

360

170

65

1120

360

200

95

PESO KG

WEIGHT KG

2,10

2,10

3,50

3,80

4,80

4,85

4,98

12,77

* Flange stampate PN16. / * PN16 Flanges from pressed stainless steel.
