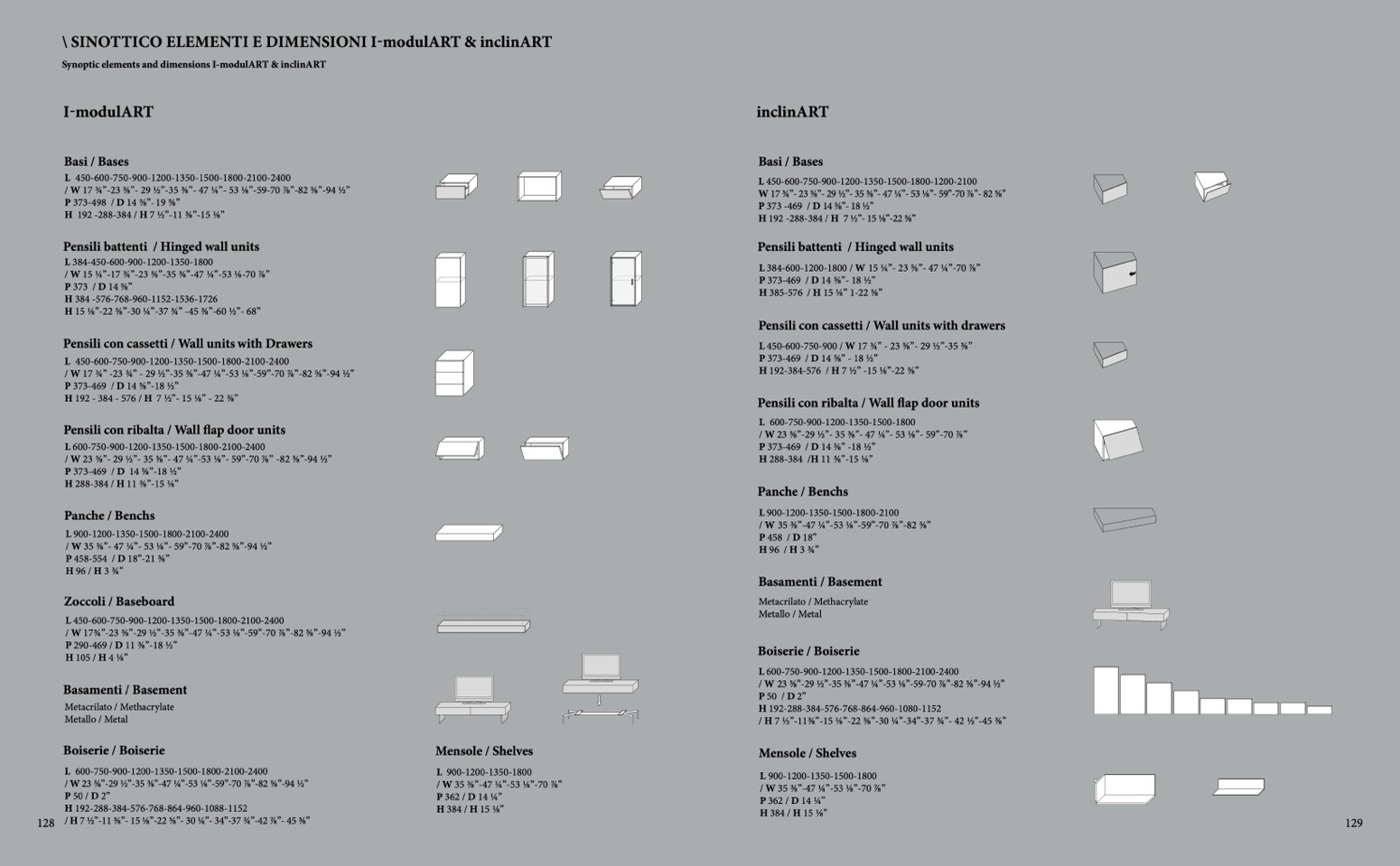

\ SINOTTICO ELEMENTI E DIMENSIONI I-modulART & inclinART
Synoptic elements and dimensions I-modulART & inclinART
I-modulART
Basi / Bases
L 450-600-750-900-1200-1350-1500-1800-2100-2400
/ W 17
3/4”-23
5/8”- 29 1/2”-35 3/8”- 47 1/4”- 53
1/8”-59-70 7/8”-82 5/8”-94 1/2”
P373-498 /D14
5/8”-195/8”
H 192 -288-384 / H 7 1/2”-11
3/8”-15
1/8”
Pensili battenti / Hinged wall units
L 384-450-600-900-1200-1350-1800
/ W 15
1/4”-17
3/4”-23 5/8”-35 3/8”-47
1/4”-53
1/8-70 7/8”
P373 /D14
5/8”
H 384 -576-768-960-1152-1536-1726
H 15
1/8”-22
5/8”-30
1/4”-37
3/4” -45 3/8”-60
1/2”- 68”
Pensili con cassetti / Wall units with Drawers
L 450-600-750-900-1200-1350-1500-1800-2100-2400
/ W 17
3/4” -23 3/4” - 29 1/2”-35 3/8”-47 1/4”-53
1/8”-59”-70
7/8”-82
5/8”-94
1/2”
P 373-469 / D 14 5/8”-18 1/2”
H 192 - 384 - 576 / H 7
1/2”- 15 1/8” - 22 5/8”
Pensili con ribalta / Wall
flap door units
L 600-750-900-1200-1350-1500-1800-2100-2400
/ W 23
5/8”- 29 1/2”- 35 3/8”- 47 1/4”-53 1/8”- 59”-70 7/8” -82 5/8”-94 1/2”
P 373-469 / D 14
5/8”-18 1/2”
H 288-384 / H 11 3/8”-15 1/8”
Panche / Benchs
L 900-1200-1350-1500-1800-2100-2400
/ W 35
3/8”- 47 1/4”- 53 1/8”- 59”-70 7/8”-82
5/8”-94
1/2”
P 458-554 / D 18”-21
3/8”
H 96 / H 3 3/4”
Zoccoli / Baseboard
L 450-600-750-900-1200-1350-1500-1800-2100-2400
/ W 17
3/4”-23 5/8”-29 1/2”-35
3/8”-47
1/4”-53 1/8”-59”-70 7/8”-82 5/8”-94 1/2”
P 290-469 / D 11
3/8”-18 1/2”
H 105 / H 4
1/8”
Basamenti / Basement
Metacrilato / Methacrylate
Metallo / Metal
Boiserie / Boiserie
L 600-750-900-1200-1350-1500-1800-2100-2400
/ W 23
5/8”-29 1/2”-35 3/8”-47 1/4”-53 1/8”-59”-70
7/8”-82 5/8”-94 1/2”
P 50 / D 2”
H 192-288-384-576-768-864-960-1088-1152
128 / H 7
1/2”-11 3/8”- 15
1/8”-22 5/8”- 30 1/4”- 34”-37 3/4”-42
7/8”- 45 3/8”
Mensole / Shelves
L 900-1200-1350-1800
/ W 35
3/8”-47
1/4”-53 1/8”-70
7/8”
P 362 / D 14
1/4”
H 384 / H 15
1/8”
inclinART
Basi / Bases
L 450-600-750-900-1200-1350-1500-1800-1200-2100
W 173/4”-235/8”-291/2”-353/8”-471/4”-531/8”-59”-707/8”-825/8”
P 373 -469 / D 14
5/8”-181/2”
H 192 -288-384 / H 7
1/2”- 15
1/8”-22 5/8”
Pensili battenti / Hinged wall units
L 384-600-1200-1800 / W 15
1/4”- 23 5/8”- 47 1/4”-70 7/8”
P 373-469 / D 14 5/8”- 18
1/2”
H 385-576 / H 15 1/8” 1-22 5/8”
Pensili con cassetti / Wall units with drawers
L 450-600-750-900 / W 17 3/4” - 23
5/8”- 29 1/2”-35 3/8”
P 373-469 / D 14 5/8” - 18 1/2”
H 192-384-576 / H 7 1/2” -15 1/8”-22 5/8”
Pensili con ribalta / Wall
flap door units
L 600-750-900-1200-1350-1500-1800
/ W 23 5/8”-29 1/2”- 35
3/8”- 47 1/4”- 53 1/8”- 59”-70 7/8”
P 373-469 / D 14 5/8” -18 1/2”
H 288-384 /H 11 3/8”-15 1/8”
Panche / Benchs
L 900-1200-1350-1500-1800-2100
/ W 35 3/8”-47 1/4”-53 1/8”-59”-70
7/8”-82
5/8”
P458 /D18”
H96 /H33/4”
Basamenti / Basement
Metacrilato / Methacrylate
Metallo / Metal
Boiserie / Boiserie
L 600-750-900-1200-1350-1500-1800-2100-2400
/ W 23
5/8”-29 1/2”-35
3/8”-47 1/4”-53 1/8”-59-70
7/8”-82 5/8”-94 1/2”
P50 /D2”
H 192-288-384-576-768-864-960-1080-1152
/ H 7 1/2”-113/8”-15 1/8”-22 5/8”-30 1/4”-34”-37 3/4”- 42 1/2”-45 3/8”
Mensole / Shelves
L 900-1200-1350-1500-1800
/ W 35
3/8”-47
1/4”-53
1/8”-70
7/8”
P 362 / D 14
1/4”
H 384 / H 15
1/8”
